Will a Remote Spotlight Mount Fit Your Truck, UTV, or Boat?

Use these seven checks for any remote spotlight, thermal imager, camera, or pan-and-tilt platform:

1. Mounting surface: Identify the material, shape, finish, condition, and usable flat area at the exact installation point.
2. Supporting structure: Confirm that the panel, rack, rail, hardtop, deck, or bracket can support the complete moving assembly.
3. Mounting method: Match magnetic, quick-mount, clamp, bracket, or permanent hardware to that surface and structure.
4. Payload: Verify total weight, dimensions, center of gravity, mounting interface, and hardware.
5. Movement and clearance: Check the full pan-and-tilt envelope, cables, overhead clearance, sightlines, and reflected glare.
6. Power and connections: Match voltage, output requirements, connectors, fuse protection, and cable routing.
7. Operating environment: Account for rain, dust, vibration, impact, temperature, freshwater or saltwater exposure, vehicle travel, and storage.

If one of these items is unknown, the installation is not yet confirmed.

Start With the Exact Surface, Not the Vehicle Name

The question is not simply, “Will this fit my F-150, ranch truck, side-by-side, or fishing boat?” The more useful question is, “What is the exact material and structure at the location where I want to install it?”

Surface or structure	Compatibility starting point	What to verify
Flat ferromagnetic steel panel	Magnetic or compatible dedicated base may be possible	Steel properties, thickness, flat contact, coating, cleanliness, panel strength, and transport limits
Aluminum body, roof, deck, or hardtop	Direct magnetic mounting will not work	Compatible quick-mount, structural bracket, backing plate, rack, or rail solution
Fiberglass or composite surface	Requires a suitable dedicated installation	Core material, backing support, load distribution, sealing, and manufacturer approval
Roof rack, bed rack, or crossbar	Compatible clamp or quick-mount may be possible	Profile, slot or tube size, load rating, fasteners, vibration, and movement clearance
UTV or ATV roll cage	Compatible tube clamp or bracket may be possible	Tube diameter, shape, bracket rotation, roof interference, vibration, and driver clearance
Boat rail	Purpose-matched rail clamp or bracket may be possible	Rail diameter, material, wall thickness, clamp rating, rotation resistance, corrosion, and tethering
Boat hardtop, deck, bow, or pulpit	Dedicated base may be possible	Access below, backing support, sealing, drainage, cable path, glare, and environmental rating

A small household magnet can help determine whether the exact location attracts a magnet, but this is only a first screening step. It does not confirm steel thickness, structural strength, load capacity, surface flatness, or suitability while the vehicle or boat is moving.

Vehicle Construction Can Change by Model Year and Location

Do not assume the whole vehicle is made from one material. A truck can combine aluminum body panels, steel structural sections, composite trim, glass, and a separately manufactured roof rack. The hood, cab roof, bed, bumper, and rack may all behave differently.

Model year, trim, panoramic roof options, aftermarket bodywork, repairs, liners, coatings, and accessories can also change the usable installation area. Before buying:

• check the vehicle manufacturer’s documentation;
• inspect the exact location rather than a similar vehicle online;
• measure the available flat area and nearby obstructions;
• identify what lies below or behind the panel; and
• confirm whether drilling or clamping could affect wiring, airbags, drainage, seals, or vehicle systems.

A vehicle-specific bracket can solve some mounting problems, but it must match the exact year, model, trim, hardware, and surrounding equipment. Do not order from a demonstration image alone.

Boat Compatibility Requires More Than Finding a Flat Area

A remote spotlight platform can also be installed on a compatible boat setup, but marine installations add several questions that land vehicles may not face.

Identify the boat’s construction

Aluminum and fiberglass boats are common, and neither provides a direct ferromagnetic surface for a magnetic base. A compatible quick-mount, rail clamp, hardtop bracket, backing plate, or other dedicated solution may be required. The attachment must distribute the moving load without crushing, flexing, cracking, or loosening the structure.

Check access and sealing

For a through-mounted base, verify access below the deck or hardtop before drilling. Check for wiring, flotation material, fuel systems, plumbing, structural cores, and inaccessible voids. Any penetration needs a sealing method appropriate for the boat material and location. Water should not be trapped around fasteners, cables, or the base.

Plan for glare and operating visibility

A high hardtop location can improve movement clearance but may reflect light from the bow, railings, windshield, spray, or deck back toward the operator. A bow or rail location may reduce some reflection but create different movement, spray, impact, and cable-routing limits. Test the proposed location temporarily at night before making permanent holes.

Verify environmental suitability

A product that accepts 12V or 24V power is not automatically marine rated, waterproof, or corrosion resistant. Check the published limits for the platform, attached device, connectors, fasteners, cables, and remote. Saltwater exposure is especially demanding. If a product’s instructions say to avoid saltwater or prolonged moisture, do not treat it as a permanent exposed marine installation.

Remove or secure removable equipment before trailering, high-speed travel, severe weather, or impacts according to the manufacturer’s instructions. Follow applicable navigation-lighting and safe-operation rules, and avoid aiming a high-intensity beam at other boaters.

Confirm the Spotlight, Thermal Device, or Camera Fits the Platform

A compatible base does not guarantee a compatible payload. Check the complete mounted assembly, including:

• the device’s actual weight;
• brackets, adapters, fasteners, protective housings, and cables;
• the mounting thread or bolt pattern;
• thread depth and fastener engagement;
• device width, height, and length;
• center of gravity and balance;
• connector orientation and cable bend radius; and
• power and control requirements.

A tall, front-heavy device can place more demand on a moving platform than a compact, centered device of the same weight. An adapter can also move the center of gravity farther from the platform. When in doubt, send the product manufacturer the device model, dimensions, total installed weight, photos, and intended orientation.

Measure the Full Movement Envelope

Remote positioning is useful only if the device can move through the angles you need. Temporarily mock up the installation and check:

1. clearance above the roof, rack, hardtop, rail, windshield, and nearby antennas;
2. clearance around light housings, thermal devices, cameras, and adapters;
3. cable slack at the farthest left, right, up, and down positions;
4. whether cables can twist, snag, rub, or enter moving joints;
5. vehicle garage, branch, trailer, storage-cover, and overhead clearance;
6. driver or operator sightlines; and
7. hood, windshield, bow, deck, rail, and water reflection.

Perform the first powered movement test while the vehicle or boat is stationary in a controlled area. Stop immediately if the device, cable, mount, or supporting structure binds or shifts.

Perform a Basic Electrical Compatibility Check

Electrical compatibility deserves its own installation plan, but the initial fitment check should confirm:

• whether the vehicle or boat uses a compatible 12V or 24V DC system;
• the separate power requirements of the platform and attached device;
• maximum supported load, current, and output;
• connector type and polarity;
• required fuse, wire size, switch, relay, and circuit protection;
• cable length and voltage drop; and
• protection from heat, sharp edges, moving parts, spray, moisture, and chafing.

A plug that physically connects does not prove electrical compatibility. Boat installations may also require marine-suitable tinned wire, sealed connections, corrosion protection, and appropriately located circuit protection. Use the instructions for the exact equipment and consult a qualified installer when requirements are unclear.

Compatibility by Application

Application	Priority checks	Common oversight
Truck or SUV roof	Panel material, flat area, roof features, payload height, transport removal	Assuming every body panel is steel
Roof rack or bed rack	Rack profile, rating, fasteners, plate thickness, vibration, cable route	Checking the mount but not the rack itself
UTV or ATV	Tube size, roof clearance, vibration, branches, operator visibility	Ignoring dynamic loads on rough terrain
Ranch or work vehicle	Frequent removal, dust, cable protection, repeatable inspection	Leaving contamination between magnetic feet and paint
Boat hardtop or deck	Backing support, access below, sealing, drainage, glare, corrosion	Treating outdoor-rated equipment as marine rated
Boat rail or pulpit	Rail diameter, clamp rating, rotation resistance, spray, tether, cable route	Using an unmatched clamp or allowing the assembly to rotate on the rail

Information to Collect Before Asking for Compatibility Help

A useful compatibility request should include:

• vehicle or boat make, model, and year;
• clear photos of the proposed mounting location from above and below;
• mounting-surface material and thickness, if known;
• flat-area dimensions or rail/tube diameter;
• rack, bracket, hardtop, or deck manufacturer and model;
• spotlight, thermal device, or camera model;
• total installed weight and dimensions;
• mounting interface or bolt pattern;
• vehicle or vessel voltage; and
• intended use, environment, speed, and removal plan.

This information is more reliable than asking whether a mount is “universal.”

NightHawk M2 Vehicle and Boat Compatibility

The Huntix360 NightHawk M2 is a wireless remote-controlled pan-and-tilt platform for compatible spotlights, thermal imaging devices, compact cameras, action cameras, and other lightweight equipment. It moves the attached device; lighting, imaging, recording, thermal detection, and optical functions depend on that separate device.

The current product specification lists a standard M8 mounting interface and a maximum mounted load of 1 kg (2.2 lb). Compatibility also depends on the payload’s dimensions, center of gravity, mounting hardware, position, connectors, voltage, power requirements, and installation method.

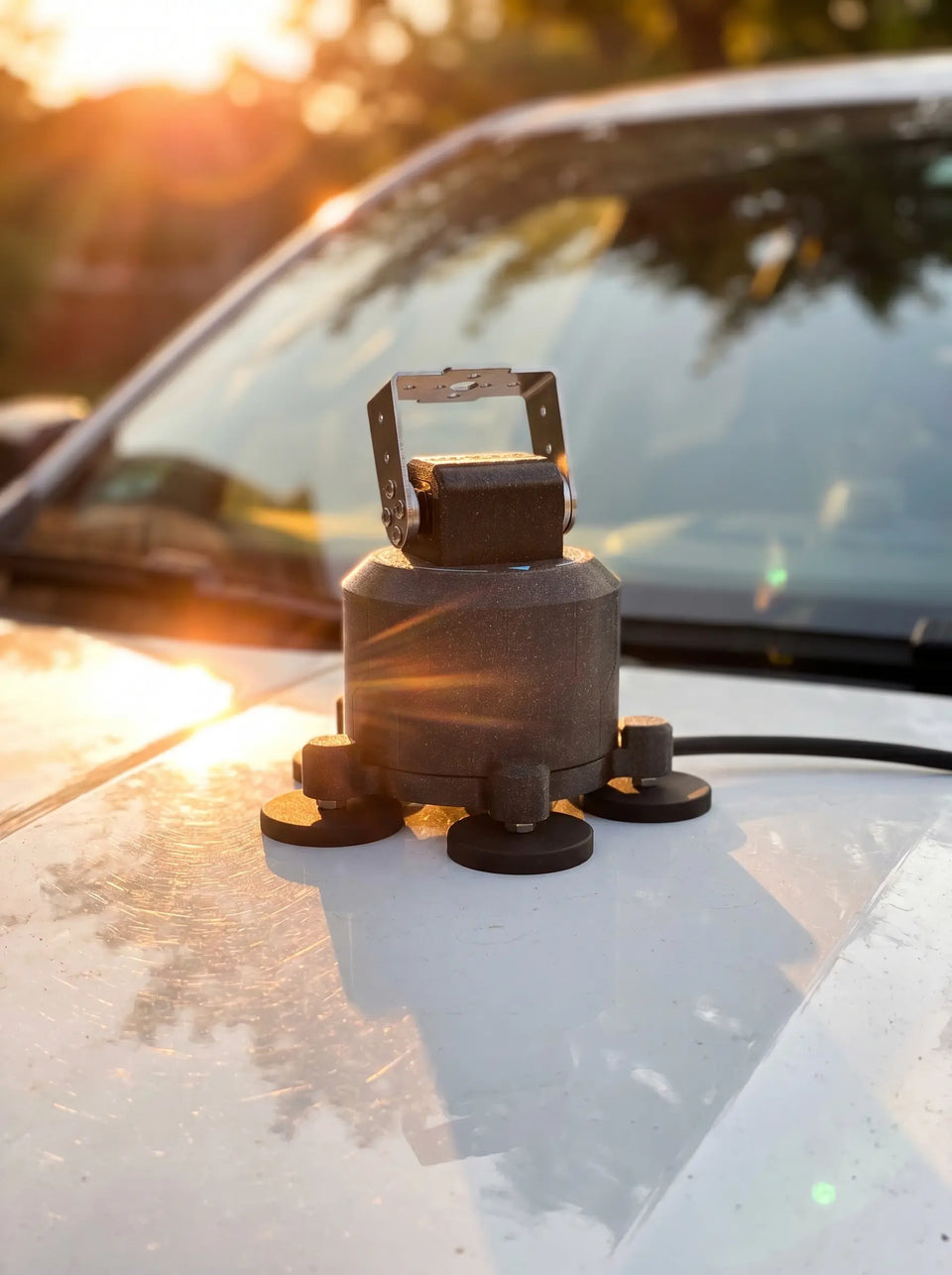

For suitable clean, flat, ferromagnetic steel surfaces, the Magnetic configuration may be considered. It is not intended for aluminum, plastic, fiberglass, non-magnetic stainless steel, strongly curved surfaces, or uneven and contaminated surfaces. For non-magnetic surfaces or a dedicated installation, the Quick-Mount configuration may be suitable when attached to a compatible structure with appropriately rated hardware.

For boat applications, many aluminum and fiberglass surfaces will require an appropriate dedicated base, bracket, rail mount, or backing structure. The current NightHawk M2 guidance also says to avoid saltwater exposure, submersion, continuous heavy rain, severe weather, and prolonged extreme moisture. Confirm the planned boat environment and installation with Huntix360 before ordering; do not assume marine-grade suitability.

See how the NightHawk M2 works for the current mounting and operating overview. If your installation is unusual, send the measurements and photos above through Huntix360 support for a compatibility review.

Frequently Asked Questions

Can I install a remote spotlight mount on an aluminum truck?

Yes, a suitable dedicated mounting solution may be possible, but a magnetic base will not attach directly to aluminum. Evaluate a compatible quick-mount, vehicle-specific bracket, rack, or structurally supported mounting plate.

Can a remote spotlight mount be installed on a boat?

Yes, when the mounting structure, base, payload, electrical system, movement clearance, and environmental limits are compatible. Aluminum and fiberglass boats usually need a dedicated base or rail solution rather than direct magnetic mounting. Confirm corrosion, moisture, saltwater, sealing, glare, and trailering requirements.

Will a spotlight mount fit my roof rack or UTV roll cage?

Possibly. Verify the crossbar profile or tube diameter, bracket compatibility, rack or cage load capacity, fasteners, platform clearance, vibration, cable routing, and overhead hazards. A generic clamp is not automatically suitable for a moving pan-and-tilt load.

Can I mount any spotlight or thermal camera on the NightHawk M2?

No universal fit is claimed. The current M2 uses an M8 interface and has a maximum mounted load of 1 kg (2.2 lb), but weight alone is not enough. Dimensions, balance, mounting hardware, connectors, voltage, power, cable movement, and installation method must also be compatible.

What is the easiest way to confirm fit before ordering?

Measure and photograph the exact mounting location, identify its material and supporting structure, and record the complete payload’s model, dimensions, weight, interface, and power requirements. Send that information to the manufacturer if any compatibility point remains uncertain.

Confirm the Complete Installation, Not Just One Part

A remote spotlight system fits only when the surface, structure, base, payload, movement, wiring, environment, and operating plan work together. That principle applies to a steel-roof ranch truck, an aluminum UTV, a roof rack, a fiberglass hardtop, or a boat rail.

If your proposed installation meets the published requirements, review the current NightHawk M2 mounting configurations and specifications. For a boat or unusual vehicle setup, confirm the environment and mounting details with Huntix360 support before ordering.
