How to Power a 12V/24V Remote Spotlight System on a Vehicle or Boat

To power a remote spotlight system safely, first confirm whether the vehicle or boat uses 12V or 24V DC. Then identify every electrical load, calculate the expected current, choose wire and circuit protection for the complete circuit, verify connector ratings and polarity, and route the cables away from heat, sharp edges, moving parts, moisture, and pinch points.

Matching the voltage is necessary, but it is not the whole installation. A plug can fit while the circuit is still undersized. A spotlight can also have different power requirements from the motorized platform that aims it. Treat the platform, light, thermal device, camera, display, and accessories as separate loads unless the manufacturer explicitly documents them as one matched system.

Confirm 12V or 24V Before Connecting Anything

Passenger vehicles, pickup trucks, UTVs, ATVs, boats, heavy trucks, and work equipment do not all use the same electrical architecture. Never determine voltage from the connector shape or vehicle category alone.

Use the vehicle or vessel documentation, the electrical-panel label, and the product manuals. If required, have a qualified technician measure the circuit. Check both the power source and every device that will connect to it.

Label	What it means	What to do
12V DC only	The device is intended for a compatible 12V direct-current supply	Do not connect it directly to 24V unless the manufacturer specifies an approved converter
24V DC only	The device requires a compatible 24V direct-current supply	Do not assume a 12V circuit will operate it correctly
12V/24V DC	The product is designed to accept both nominal systems within its published input range	Still verify polarity, current, connectors, fuse, and all attached accessories
Household AC	Alternating-current mains power	Never connect a DC spotlight platform directly to AC mains; use only an appropriately rated certified AC-to-DC supply when the manufacturer allows stationary AC-powered use

Also remember that a nominal 12V or 24V system does not remain at exactly that number under every condition. Charging, battery state, cable loss, and other loads can change the voltage seen by the equipment. Use the manufacturer’s published input range and instructions rather than the nominal label alone.

Build a Complete Electrical Load List

A remote positioning setup can include more than one load:

• the pan-and-tilt platform or motor controller;
• the spotlight or LED pod;
• a thermal imager or camera;
• an in-cab or helm display;
• wireless receivers, relays, switches, or control modules;
• USB-powered accessories; and
• a second platform or light in a dual system.

Some systems pass power through the moving platform to the attached light. Others require a separate cable or circuit. Confirm which components share wiring and which need independent protection.

If a device lists power in watts but not current, the basic relationship is:

Current in amps ≈ power in watts ÷ voltage in volts.

For example, the same stated wattage generally requires more current on a 12V system than on a 24V system. This simple calculation is only a planning estimate. Actual input current, startup behavior, efficiency, operating mode, and manufacturer requirements still control the final design.

Why Wire Size Cannot Be Chosen From Wattage Alone

Wire size depends on more than the product name or maximum wattage. A proper selection considers:

• maximum continuous and temporary current;
• total circuit length, including the positive and negative paths;
• acceptable voltage drop;
• wire insulation temperature rating;
• ambient temperature and engine-compartment exposure;
• whether wires are bundled or enclosed;
• connector and switch ratings;
• vehicle or marine installation standards; and
• the equipment manufacturer’s instructions.

A long cable run can require a larger conductor than a short run carrying the same current because resistance creates voltage drop. Undersized wire can cause weak light output, slow or unstable platform movement, controller resets, hot connectors, damaged insulation, or fire.

Do not copy a wire size from another installation unless the voltage, current, round-trip length, temperature, routing, insulation, and circuit-protection conditions all match. Use an appropriate DC wire-sizing method and have the result reviewed when the circuit is high-power, long, concealed, or exposed to a demanding environment.

A Fuse or Breaker Protects the Circuit Wiring

Circuit protection is intended to interrupt excessive current before the wire overheats during an overload or short circuit. The device manufacturer may specify a fuse or breaker value, but the protection must also be appropriate for the wire, source, installation environment, and expected load.

As a general planning principle:

• protect the positive feed as close to the power source as the applicable installation rules require;
• never install a larger fuse merely to stop repeated fuse failures;
• identify and correct the cause of a blown fuse before replacing it;
• ensure the fuse holder, breaker, terminals, switches, relays, and connectors are rated for the circuit and environment; and
• label the circuit so future users know what it powers and how to isolate it.

There is no responsible universal fuse size for every remote spotlight. A small LED device, a high-output spotlight, and a dual-platform system can require very different circuits.

Choose the Power Connection for the Actual Load

Accessory socket or temporary plug

A vehicle or boat accessory socket can be convenient for a temporary, manufacturer-approved setup. Before using it, verify the socket voltage, current rating, factory fuse, connector quality, duty cycle, and whether other equipment shares the circuit.

Do not assume every cigarette-lighter-style socket can continuously power a high-output spotlight. A loose or underrated plug can develop resistance and heat. Stop using the circuit if the plug, socket, cable, or connector becomes unusually warm, discolored, loose, or intermittent.

Dedicated fused circuit

A dedicated circuit is often the better approach for repeat-use or higher-power installations. It allows the wire, fuse, switch or relay, connectors, and routing to be selected for the actual equipment rather than relying on an unknown shared accessory circuit.

The design should include a reliable positive supply, a proper negative return or approved grounding method, accessible isolation, strain relief, and protection at every transition or penetration. On modern vehicles, follow the vehicle manufacturer’s electrical guidance so the installation does not interfere with battery monitoring, airbags, control modules, or other safety systems.

Dual-platform or multi-device systems

Do not assume a simple Y-splitter can safely turn one circuit into two. The combined current can exceed the original wiring, connector, switch, socket, or fuse rating. Separate circuits can improve isolation and make troubleshooting easier when the product manufacturer recommends them.

Calculate each branch and the upstream supply. If two platforms, two lights, a display, and accessories can operate at the same time, design for the documented simultaneous load rather than an optimistic average.

Route Vehicle Wiring Away From Hazards

Plan the complete cable path before mounting the equipment. Keep wiring away from:

• exhaust components, engines, heaters, and other hot surfaces;
• sharp sheet-metal edges and unprotected drilled holes;
• door seals, hinges, latches, windows, tailgates, and folding roofs;
• steering, suspension, belts, fans, and other moving parts;
• airbag deployment zones and safety-system wiring;
• areas where cargo, boots, tools, or animals can pull the cable; and
• pan-and-tilt movement where slack could wind around the platform.

Use suitable abrasion protection, grommets, supports, strain relief, and sealed connectors where required. Do not trap a temporary cable in a door or window if closing pressure can crush the insulation or conductor.

Leave only the controlled movement slack specified for the device. Too little slack can pull on the connector; too much can snag, flap, or wrap around the moving assembly.

Boat Wiring Needs Marine-Specific Planning

A boat may use a compatible 12V or 24V DC supply, but that does not make an automotive wiring method suitable for the marine environment. Spray, humidity, salt, vibration, fuel-vapor zones, corrosion, and long cable runs all affect the installation.

For a boat installation:

• use conductors, terminals, connectors, circuit protection, and enclosures suitable for the marine location;
• calculate wire size using the full positive-and-negative circuit length;
• use a proper negative return rather than assuming the hull or structure is an acceptable return path;
• seal and protect penetrations without trapping water;
• keep connections accessible for inspection;
• consider ignition-protected equipment where flammable vapors may be present; and
• follow applicable marine electrical standards and the boat manufacturer’s instructions.

A qualified marine electrician should review installations near fuel systems, batteries, engine spaces, concealed structures, or high-current circuits.

Test the System Before Field Use

1. Inspect before energizing: Verify polarity, terminal tightness, fuse or breaker, exposed conductors, cable support, and connector engagement.
2. Test one component at a time: Confirm the platform powers on and moves correctly before adding the spotlight or other accessory when the instructions permit staged testing.
3. Operate the full load: Test the light and platform through the intended modes while the vehicle or boat is stationary.
4. Check voltage and temperature: Look for excessive voltage drop, dimming, resets, hot cables, hot plugs, or hot terminals.
5. Move through the full range: Confirm that cables remain clear at every pan-and-tilt position.
6. Reinspect after the first session: Check for looseness, abrasion, water entry, corrosion, and heat discoloration.

Disconnect power and investigate if a fuse opens repeatedly, wiring becomes hot, insulation smells or discolors, the platform resets, connectors arc, or performance changes unexpectedly.

Common Power Problems and What They Suggest

Symptom	Possible electrical causes	Safe next step
Light dims when the platform moves	Voltage drop, undersized circuit, weak connection, shared supply, or source limitation	Power down and have the complete circuit tested under load
Controller resets or loses pairing	Low supply voltage, intermittent connector, electrical noise, or overloaded circuit	Verify the supply and connections before repeating setup procedures
Fuse blows	Short circuit, reversed wiring, damaged cable, incorrect load, or equipment fault	Do not fit a larger fuse; isolate and diagnose the fault
Plug or terminal becomes hot	Loose connection, corrosion, undersized component, overload, or poor contact	Disconnect power and replace or correct the affected part after diagnosis
Motor works but spotlight does not	Separate accessory circuit, incompatible voltage, connector, fuse, switch, or light fault	Check the platform and spotlight manuals as separate systems
Problem appears only in rain or spray	Moisture entry, unsuitable connector, damaged seal, corrosion, or insulation fault	Stop use, isolate power, dry safely, and inspect before re-energizing

Powering the Huntix360 NightHawk M2

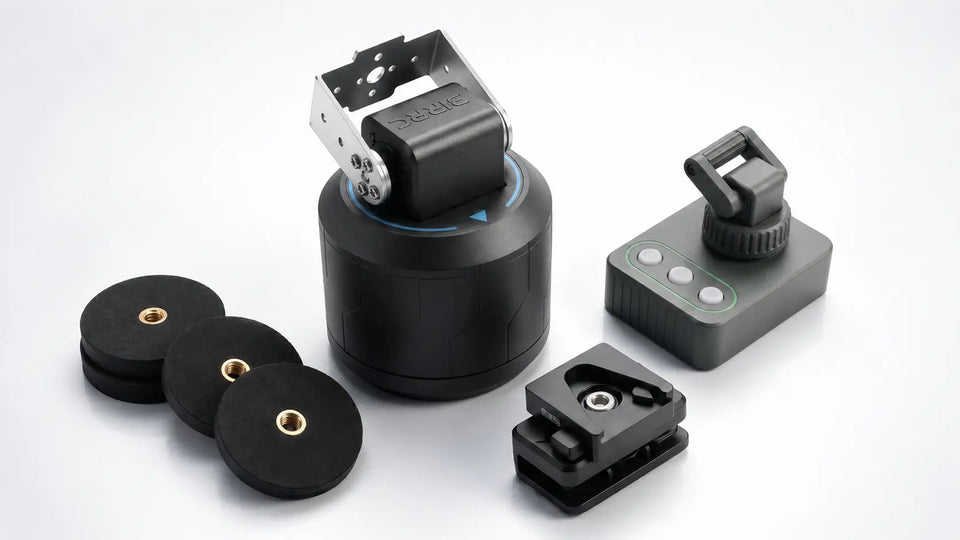

The Huntix360 NightHawk M2 is a wireless remote-controlled pan-and-tilt platform. The current product page specifies a compatible 12V or 24V DC power source. It must not be connected directly to household AC mains.

The mounted spotlight, thermal imager, camera, or other accessory can have separate voltage, current, connector, and power requirements. The M2 moving platform and attached device should therefore be checked as a complete electrical system before connection.

Current Huntix360 safety guidance requires correct polarity and proper wiring. It warns that reverse polarity, short circuits, and improper connections can damage the M2 or the vehicle electrical system. For high-power equipment or a dual-M2 setup, Huntix360 recommends an independent power circuit for each unit rather than a simple Y-splitter connection.

For stationary operation from household power, use only an appropriately rated and certified AC-to-DC power supply that matches the published DC input requirements. Such a supply is not included unless the selected configuration expressly states otherwise.

See how the NightHawk M2 works for the current connection and operation overview. If your spotlight, boat, vehicle, dual-platform layout, or connector requirements are uncertain, send the details through Huntix360 support before ordering or energizing the system.

Frequently Asked Questions

Can I connect a 12V spotlight to a 24V vehicle?

Not directly unless the spotlight manufacturer explicitly approves 24V input. A properly rated converter may be possible when approved, but its input, output, current capacity, wiring, heat, and protection must all be designed for the load.

What fuse size should I use for a remote spotlight?

There is no universal fuse size. Follow the equipment manufacturer’s requirement and select circuit protection that is appropriate for the wire, load, source, and installation environment. A qualified installer should calculate it when the documentation is incomplete.

How do I choose the correct wire size?

Use the maximum current, total positive-and-negative circuit length, acceptable voltage drop, insulation rating, temperature, bundling, environment, and applicable installation standard. Do not select wire size from wattage alone.

Can I power a remote spotlight from a cigarette-lighter socket?

Only if the spotlight or complete system is approved for that connection and the socket, plug, factory wiring, and fuse are rated for the continuous load. Stop if the connection becomes hot, loose, discolored, or intermittent.

Does the NightHawk M2 power the spotlight or camera?

The M2 controls the physical direction of the mounted device. Attached equipment may have separate power and connector requirements. Confirm the current product documentation and selected configuration rather than assuming every accessory receives power through the platform.

Can the same wiring approach be used on a truck and a boat?

The electrical principles are similar, but the installation environment is not. Boats require marine-suitable components and attention to corrosion, spray, ignition hazards, negative-return wiring, circuit length, and applicable marine standards. Use a qualified marine electrician when necessary.

Design the Circuit Before Installing the Hardware

A reliable remote spotlight setup begins with a documented electrical plan: correct voltage, complete load list, properly sized positive and negative conductors, suitable circuit protection, rated connectors, protected routing, and a test procedure. Build the circuit for the real simultaneous load—not just the easiest available plug.

Once the vehicle or boat circuit and attached device meet the published requirements, review the current NightHawk M2 specifications and configurations before completing the installation.
